The DL-F4200 is a 4.2 m five-layer non-woven thermal bonding, folding and rewinding machine. It thermally bonds five layers of non-woven fabric using hot PP melt from four mini screw extruders, then folds the bonded web in the center and rewinds it into finished rolls. Ideal for producing thick, multi-layer non-woven products for hygiene, filtration and industrial applications.

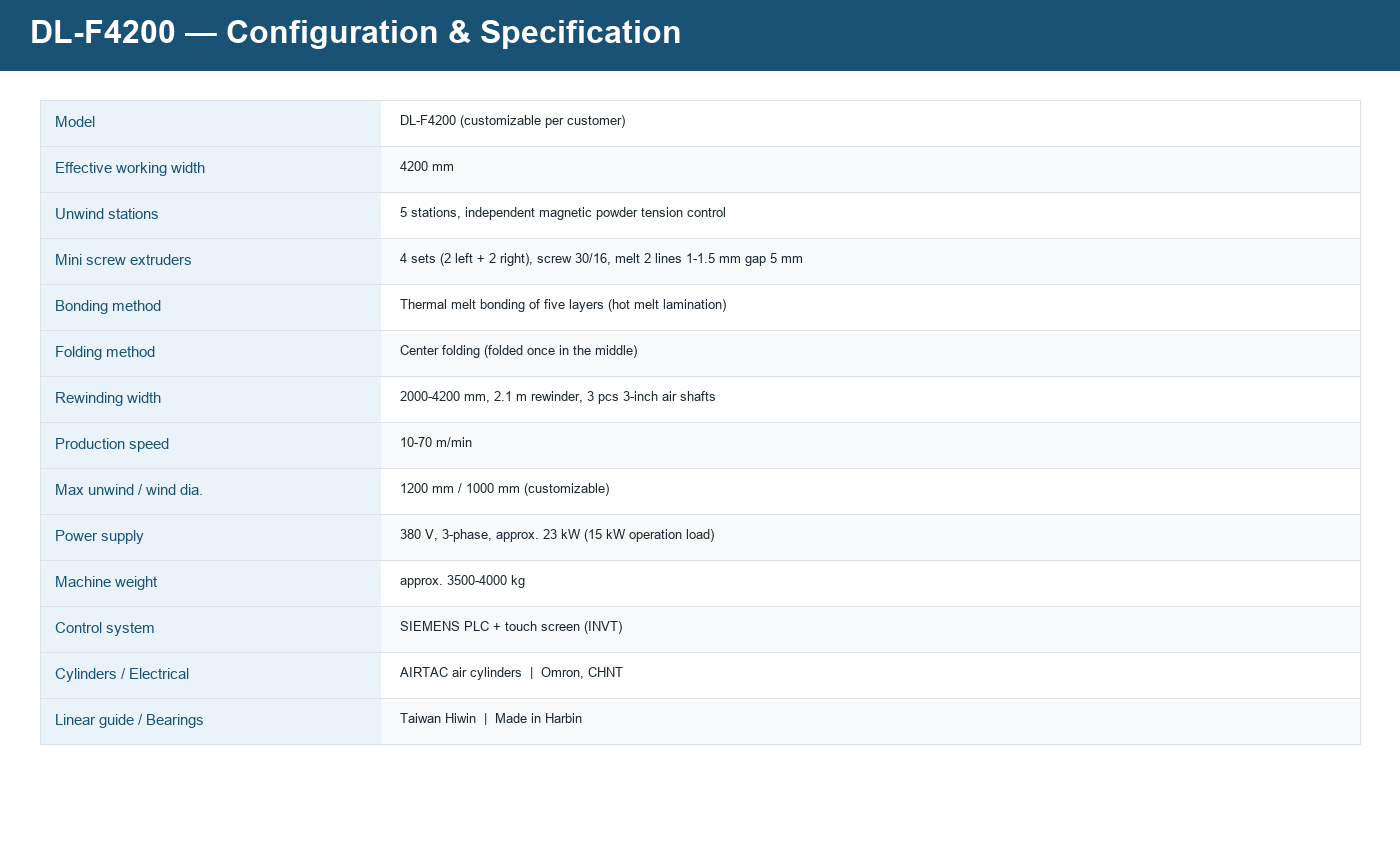

| Item | Parameter |
|---|---|
| Model | DL-F4200 (customizable per customer) |
| Effective working width | 4200 mm |
| Unwind stations | 5 stations, independent magnetic powder tension control |
| Mini screw extruders | 4 sets (2 left + 2 right), screw 30/16, melt 2 lines 1-1.5 mm gap 5 mm |
| Bonding method | Thermal melt bonding of five layers (hot melt lamination) |
| Folding method | Center folding (folded once in the middle) |
| Rewinding width | 2000-4200 mm, 2.1 m rewinder with 3 pcs 3-inch air shafts |
| Production speed | 10-70 m/min |
| Max unwind / wind diameter | 1200 mm / 1000 mm (customizable) |
| Power supply | 380 V, 3-phase, approx. 23 kW (15 kW operation load) |
| Machine weight | approx. 3500-4000 kg |
| Control system | SIEMENS PLC + touch screen (INVT) |
| Cylinders | AIRTAC air cylinders |
| Electrical components | Omron, CHNT |
| Linear guide | Taiwan Hiwin |
| Bearings | Made in Harbin |
| Item | Details |
|---|---|
| Price terms | FOB NINGBO |
| Currency | Price on request |
| Delivery time | 30 working days after receipt of deposit |
| Payment terms | T/T (deposit + balance before shipment) |
| Packing | Export-standard wooden case / seaworthy packing |
| Warranty | 12 months from date of shipment (except wear parts) |
| Validity | 30 days from date of issue |
Email us at max@ax-machinery.com or message us on WhatsApp for price, lead time and technical details.
