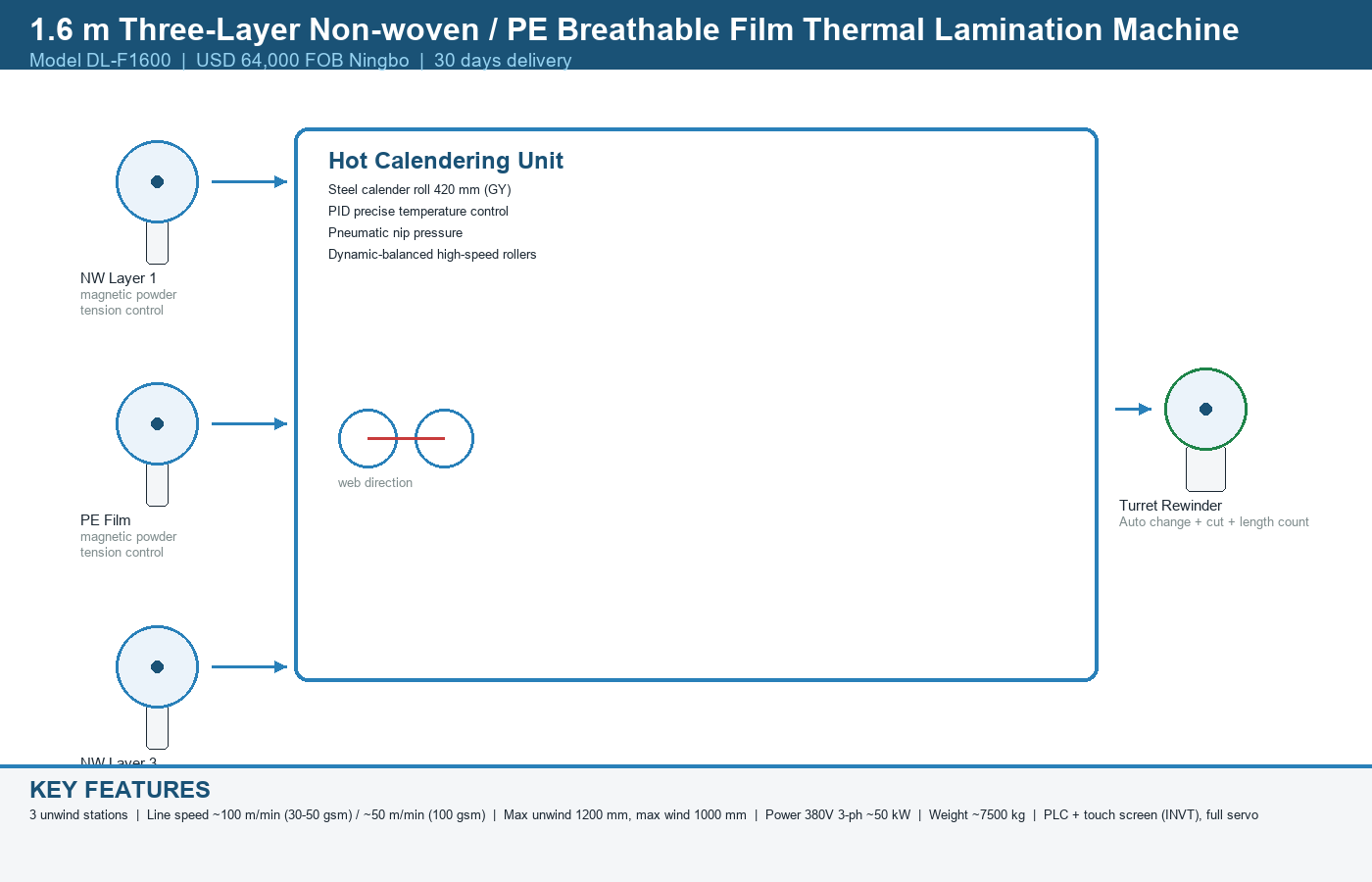

The DL-F1600 is a 1.6 m three-layer non-woven / PE breathable film thermal lamination and rewinding machine. It thermally bonds three layers — non-woven fabric, PE breathable film, and non-woven fabric — into one laminated roll via hot calendering. Designed for hygiene, medical and packaging applications where breathable yet liquid-resistant barrier materials are required.

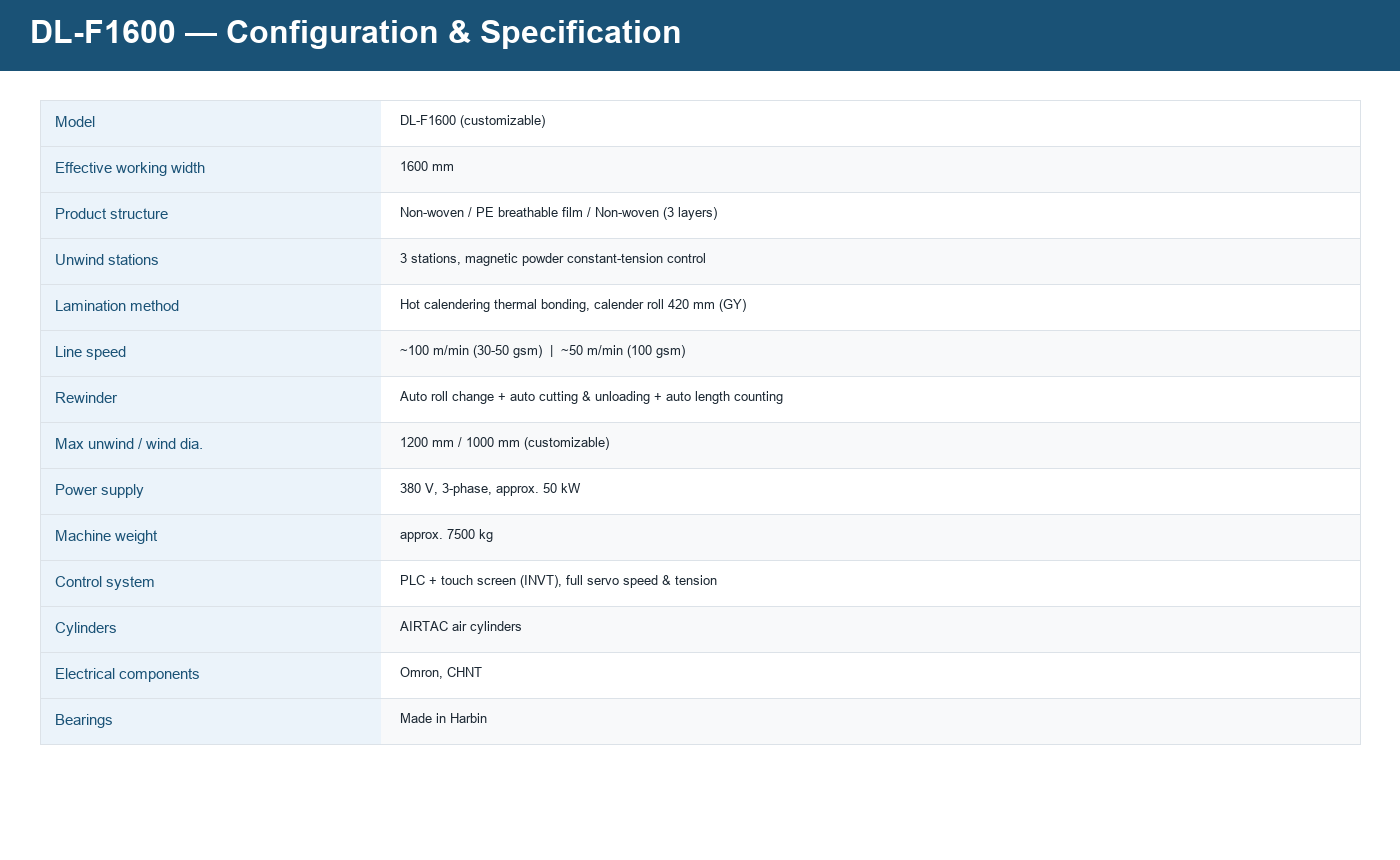

| Item | Parameter |
|---|---|
| Model | DL-F1600 (customizable) |
| Effective working width | 1600 mm |
| Product structure | Layer 1: Non-woven fabric / Layer 2: PE breathable film / Layer 3: Non-woven fabric (3 layers) |
| Unwind stations | 3 stations, each with magnetic powder constant-tension control |
| Lamination method | Hot calendering (hot rolling) thermal bonding |
| Calender roll | 420 mm diameter (GY) |
| Line speed | ~100 m/min (30-50 gsm) / ~50 m/min (100 gsm) |
| Rewinder | Auto roll change + auto cutting & unloading + auto length counting |
| Max unwind / wind diameter | 1200 mm / 1000 mm (customizable) |
| Power supply | 380 V, 3-phase, approx. 50 kW |
| Machine weight | approx. 7500 kg |
| Control system | PLC + touch screen (INVT), full servo control |
| Cylinders | AIRTAC air cylinders |
| Electrical components | Omron, CHNT |
| Bearings | Made in Harbin |
| Item | Details |
|---|---|
| Price terms | FOB NINGBO |
| Currency | USD 64,000 / set |
| Delivery time | 30 working days after receipt of deposit |
| Payment terms | 30% T/T deposit, 70% T/T before shipment |
| Packing | Export-standard wooden case / seaworthy packing |
| Warranty | 12 months from date of shipment (except wear parts) |
| Validity | 30 days from date of issue |
Email us at max@ax-machinery.com or message us on WhatsApp for price, lead time and technical details.
